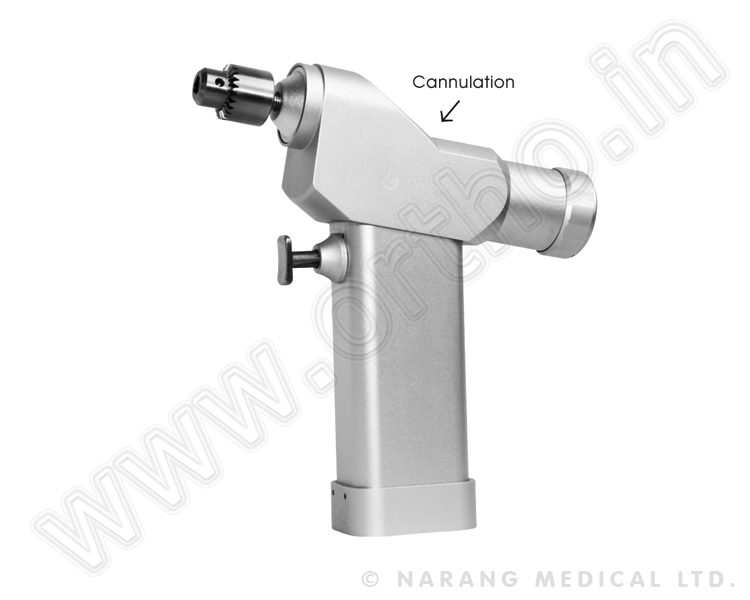

VSPT1417 Vet Battery Operated Cannulated Reaming & Drilling System AO Types


Specifications :

Power Output : ≥ 85W
Speed : 0-630(r.p.m)
Torque : 3.6Nm
Noise : ≤ 40 (db)
Battery : 9.6 (V), Ni-Mh, 1800 mA/h
Sterilization : 135° C

   Usage: Trauma Operation. Dual function, stepless variable speed control

Set Consisting of : Units
VSPT1417.1 - Battery powered handpiece with AO/Synthes Reamer Adapter 1
VSPT141 - Battery 2
VSPT142 - Battery Charger 220V, 50Hz 1
VSPT143 - Sterilizing Ring 2
VSPT144 - Jacub Chuck & Key 1


VSPT1418 Vet Battery Operated Cannulated Reaming & Drilling


Same as VSPT1417 but with Stryker Reamer Adapter


VSPT17 Vet Battery Operated Cannulated Reaming & Drilling System AO Types


   Same as VSPT1417 but with below specifications

Specifications :

Power Output : ≥ 90W
Speed : 0-630(r.p.m)
Torque : 4.6Nm
Noise : ≤ 40 (db)
Battery : 14.4 (V), Ni-Mh, 1800 mA/h
Sterilization : 155° C

   Usage: Trauma Operation. Dual function, stepless variable speed control



VSPT18 Vet Battery Operated Cannulated Reaming & Drilling System


Same as VSPT1417 but with Stryker Reamer Adapter


VSPT617 Vet Battery Operated Cannulated Reaming & Drilling System High Torque / High Power AO Types


    Same as VSPT1417 but with below specifications

Specifications :

Power Output : ≥ 100W
Speed : 0-630(r.p.m)
Torque : 5.1Nm
Noise : ≤ 40 (db)
Battery : 14.4 (V), Ni-Mh, 1800 mA/h
Sterilization : 135° C

   Usage: Trauma Operation. Dual function, stepless variable speed control



VSPT618 Vet Battery Operated Cannulated Reaming & Drilling System


Same as VSPT617 but with Stryker Reamer Adapter


VSPT617 Vet Battery Operated Cannulated Reaming & Drilling System High Torque / High Power AO Types


    Same as VSPT1417 but with below specifications

Specifications :

Power Output : ≥ 20W
Speed : 0-460(r.p.m)
Torque : 1.0Nm
Noise : ≤ 40 (db)
Battery : 7.2 (V), Ni-Mh, 1800 mA/h
Sterilization : 155° C

   Usage: For Small bone Trauma Operation, Stepless variable speed control

OPTIONAL Adapters for VSPT1417 / VSPT17 & VSPT617 (To be Ordered Separately at Extra Cost)
VSPT08 - Hudson Adapter
VSPT09 - Zimmer Adapter
VSPT10 - Link Adapter
VSPT11 - Aesculup Adapter
VSPT12 - Stryker Adapter
OPTIONAL Adapters for VSPT1418 / VSPT18 & VSPT618 (To be Ordered Separately at Extra Cost)
VSPT13 - Link Adapter
VSPT14 - Aesculup Adapter
VSPT15 - AO/Synthes Adapter
